Optimise with Quadratic Polynomial#

If one can approximately find a minimum then using a quadratic polynomial interpolate through three starting points.

The quadratic polynomial has a minimum when its first derivative is zero.

\[\begin{split}y &= f(x) = a\cdot x^2 + b\cdot x + c \\ \frac {dy}{dx} &= 2\cdot a\cdot x + b = 0 \\ b &= - 2\cdot a\end{split}\]

The Newton Raphson interpolating polyomial passing through three points (a,f(a), b,f(b), c,f(c)) can be expressed as

\[\begin{split}g(x) &= f(a) + \alpha\cdot(x - a) + \beta \cdot(x - a)(x - b) \\ \frac {dg}{dx} &= \alpha + \beta\cdot(2x - a - b) = 0 \\ x &= \frac{a + b}{2} - \frac{\alpha}{\beta}\end{split}\]

where the coefficients \(\alpha ,\beta\) are determined from g(a) = f(a), g(b) = f(b), g(c) = f(c)

\[\begin{split}\alpha &= \frac {f(b) - f(a)}{b - a} \\ \beta &= \frac {f(c) - f(a) - \alpha(c -a)}{(c - a)(c - b)}\end{split}\]
../_images/succ_para1.png

Overview of successive quadratic interpolation#

For the sake of simplicity some speed has been sacrificed

The method is not guaranteed to converge, and works best when the limits bracket the point of interest. The following script changes the inputs in rotation without any additional conditions.

Show/Hide Code successive_parabolic_interpolation.py

# finds extrema
# https://drlvk.github.io/nm/section-parabolic-interpolation.html
# https://ece.uwaterloo.ca/~dwharder/nm/Lecture_materials/pdfs/8.1.4%20Successive%20parabolic%20interpolation.pdf
# https://csg.sph.umich.edu/abecasis/class/2006/615.16.pdf
# expand
from math import pi
from prettytable import PrettyTable

f = lambda x: 2 * (pi*x**2 + 50/x) #x**4 - 3*x**2 + x + 1;
a = 1
b = 3
c = 5
fa = f(a)
fb = f(b)
fc = f(c)
t = PrettyTable(['step', 'a', 'b', 'c', 'x', 'fa', 'fb', 'fc', 'fx', 'emax'])

step = 0
t.add_row([step, round(a,7), round(b,7), round(c,7), None, \
        round(fa,7), round(fb,7), round(fc,7), None, round(abs(max([a, b, c]) - min([a, b, c])),7)])

while abs(max([a, b, c]) - min([a, b, c])) > 1e-6:
    alpha = (fb-fa)/(b-a)
    beta = (fc-fa-alpha*(c-a))/((c-a)*(c-b))
    x = (a+b)/2 - alpha/(2*beta)
    step +=1
    t.add_row([step, round(a,7), round(b,7), round(c,7), round(x,7), \
        round(fa,7), round(fb,7), round(fc,7), round(f(x),7), round(abs(max([a, b, c]) - min([a, b, c])),7)])
    a = b
    b = c
    c = x
    fa = fb
    fb = fc
    fc = f(c)

    if step > 19:
        break

print(t)
print(f'Found x = {c:.7} with f(x) = {f(c):.7} after {step} steps\n')

'''
+------+-----------+-----------+-----------+-----------+-------------+-------------+-------------+------------+-----------+
| step |     a     |     b     |     c     |     x     |      fa     |      fb     |      fc     |     fx     |    emax   |
+------+-----------+-----------+-----------+-----------+-------------+-------------+-------------+------------+-----------+
|  0   |     5     |     3     |     1     |    None   | 177.0796327 |  89.8820011 | 106.2831853 |    None    |     4     |
|  1   |     5     |     3     |     1     | 2.3166288 | 177.0796327 |  89.8820011 | 106.2831853 | 76.8865773 |     4     |
|  2   |     3     |     1     | 2.3166288 | 2.1983511 |  89.8820011 | 106.2831853 |  76.8865773 | 75.8536877 |     2     |
|  3   |     1     | 2.3166288 | 2.1983511 | 2.0890269 | 106.2831853 |  76.8865773 |  75.8536877 | 75.2892082 | 1.3166288 |
|  4   | 2.3166288 | 2.1983511 | 2.0890269 | 1.9790689 |  76.8865773 |  75.8536877 |  75.2892082 | 75.1382498 | 0.2276019 |
|  5   | 2.1983511 | 2.0890269 | 1.9790689 |  1.994337 |  75.8536877 |  75.2892082 |  75.1382498 | 75.132593  | 0.2192822 |
|  6   | 2.0890269 | 1.9790689 |  1.994337 | 1.9967646 |  75.2892082 |  75.1382498 |  75.132593  | 75.1325086 |  0.109958 |
|  7   | 1.9790689 |  1.994337 | 1.9967646 | 1.9964674 |  75.1382498 |  75.132593  |  75.1325086 | 75.132507  | 0.0176957 |
|  8   |  1.994337 | 1.9967646 | 1.9964674 | 1.9964728 |  75.132593  |  75.1325086 |  75.132507  | 75.132507  | 0.0024276 |
|  9   | 1.9967646 | 1.9964674 | 1.9964728 | 1.9964727 |  75.1325086 |  75.132507  |  75.132507  | 75.132507  | 0.0002972 |
|  10  | 1.9964674 | 1.9964728 | 1.9964727 | 1.9964727 |  75.132507  |  75.132507  |  75.132507  | 75.132507  |  5.4e-06  |
+------+-----------+-----------+-----------+-----------+-------------+-------------+-------------+------------+-----------+
Found x = 1.996473 with f(x) = 75.13251 after 10 steps
'''

gave the following result:

+------+-----------+-----------+-----------+-----------+-------------+-------------+-------------+------------+-----------+
| step |     a     |     b     |     c     |     x     |      fa     |      fb     |      fc     |     fx     |    emax   |
+------+-----------+-----------+-----------+-----------+-------------+-------------+-------------+------------+-----------+
|  0   |     5     |     3     |     1     |    None   | 177.0796327 |  89.8820011 | 106.2831853 |    None    |     4     |
|  1   |     5     |     3     |     1     | 2.3166288 | 177.0796327 |  89.8820011 | 106.2831853 | 76.8865773 |     4     |
|  2   |     3     |     1     | 2.3166288 | 2.1983511 |  89.8820011 | 106.2831853 |  76.8865773 | 75.8536877 |     2     |
|  3   |     1     | 2.3166288 | 2.1983511 | 2.0890269 | 106.2831853 |  76.8865773 |  75.8536877 | 75.2892082 | 1.3166288 |
|  4   | 2.3166288 | 2.1983511 | 2.0890269 | 1.9790689 |  76.8865773 |  75.8536877 |  75.2892082 | 75.1382498 | 0.2276019 |
|  5   | 2.1983511 | 2.0890269 | 1.9790689 |  1.994337 |  75.8536877 |  75.2892082 |  75.1382498 | 75.132593  | 0.2192822 |
|  6   | 2.0890269 | 1.9790689 |  1.994337 | 1.9967646 |  75.2892082 |  75.1382498 |  75.132593  | 75.1325086 |  0.109958 |
|  7   | 1.9790689 |  1.994337 | 1.9967646 | 1.9964674 |  75.1382498 |  75.132593  |  75.1325086 | 75.132507  | 0.0176957 |
|  8   |  1.994337 | 1.9967646 | 1.9964674 | 1.9964728 |  75.132593  |  75.1325086 |  75.132507  | 75.132507  | 0.0024276 |
|  9   | 1.9967646 | 1.9964674 | 1.9964728 | 1.9964727 |  75.1325086 |  75.132507  |  75.132507  | 75.132507  | 0.0002972 |
|  10  | 1.9964674 | 1.9964728 | 1.9964727 | 1.9964727 |  75.132507  |  75.132507  |  75.132507  | 75.132507  |  5.4e-06  |
+------+-----------+-----------+-----------+-----------+-------------+-------------+-------------+------------+-----------+
Found x = 1.996473 with f(x) = 75.13251 after 10 steps

The method of calculating the quadratic can be simplified but then one must ensure that the order of starting points is ascending in the x-axis. As a general factor the middle point must have a value below the values of the two outer points, otherwise the quadratic does not become concave enough to form a minimum.

../_images/succ_para2.png

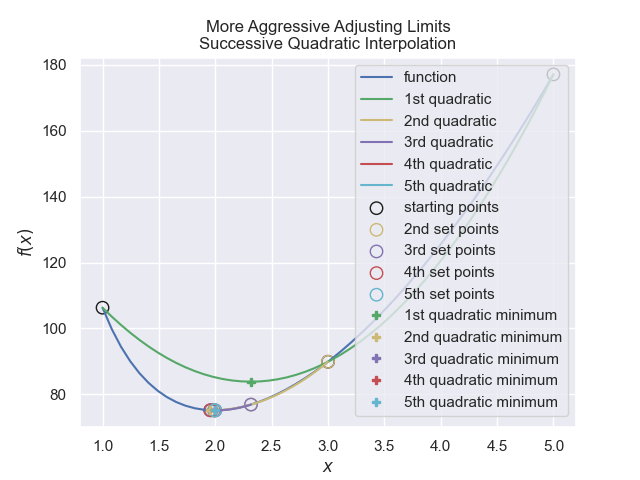

A more aggressive limit changing with successive quadratic interpolation#

Using a robust quadratic function with a more aggressive change to the limits, also the middle point b is always updated by the calculated point x, the outer limit with the largest value becomes the old middle point and as a last change the other outer limit is reduced to a quarter of its old position relative to the calculated point:

+------+-----------+-----------+-----------+-----------+-------------+------------+-------------+------------+-----------+
| step |     a     |     b     |     c     |     x     |      fa     |     fb     |      fc     |     fx     |    emax   |
+------+-----------+-----------+-----------+-----------+-------------+------------+-------------+------------+-----------+
|  0   |     1     |     3     |     5     | 2.3166288 | 106.2831853 | 89.8820011 | 177.0796327 | 76.8865773 |     4     |
|  1   | 1.9874716 | 2.3166288 |     3     | 1.9551871 |  75.1340388 | 76.8865773 |  89.8820011 | 75.1650885 | 1.0125284 |
|  2   | 1.9632582 | 1.9551871 | 2.3166288 | 2.0000493 |  75.1535364 | 75.1650885 |  76.8865773 | 75.1327478 | 0.3614417 |
|  3   | 1.9908515 | 2.0000493 | 1.9551871 | 1.9964618 |  75.1331037 | 75.1327478 |  75.1650885 | 75.132507  | 0.0448623 |
|  4   | 1.9950593 | 1.9964618 | 2.0000493 | 1.9964736 |  75.1325447 | 75.132507  |  75.1327478 | 75.132507  | 0.0049901 |
|  5   |  1.99612  | 1.9964736 | 1.9964618 | 1.9964727 |  75.1325093 | 75.132507  |  75.132507  | 75.132507  | 0.0003536 |
|  6   | 1.9964736 | 1.9964727 |  1.99647  | 1.9964727 |  75.132507  | 75.132507  |  75.132507  | 75.132507  |  3.6e-06  |
+------+-----------+-----------+-----------+-----------+-------------+------------+-------------+------------+-----------+
Found x = 1.996473 with f(x) = 75.13251 after 6 steps

Show/Hide Code successive_parabolic_interpolation1.py

# finds extrema
# https://drlvk.github.io/nm/section-parabolic-interpolation.html
# https://ece.uwaterloo.ca/~dwharder/nm/Lecture_materials/pdfs/8.1.4%20Successive%20parabolic%20interpolation.pdf
# https://csg.sph.umich.edu/abecasis/class/2006/615.16.pdf
# expand
from math import pi
from prettytable import PrettyTable

f = lambda x: 2 * (pi*x**2 + 50/x) #x**4 - 3*x**2 + x + 1;
a = 1
b = 3
c = 5
fa = f(a)
fb = f(b)
fc = f(c)
t = PrettyTable(['step', 'a', 'b', 'c', 'x', 'fa', 'fb', 'fc', 'fx', 'emax'])

step = 0

while abs(max([a, b, c]) - min([a, b, c])) > 1e-6:
    x = b - ((b-a)**2*(fb-fc)-(b-c)**2*(fb-fa))/(2*((b-a)*(fb-fc)-(b-c)*(fb-fa)))

    t.add_row([step, round(a,7), round(b,7), round(c,7), round(x,7), \
        round(fa,7), round(fb,7), round(fc,7), round(f(x),7), round(abs(max([a, b, c]) - min([a, b, c])),7)])
    if fc > fa:
        c = b
        a = a/4+3*x/4
        b = x
        fc = fb
        fa = f(a)
        fb = f(b)
    else:
        a = b
        c = c/4+3*x/4
        b = x
        fa = fb
        fc = f(c)
        fb = f(b)

    step +=1
    if step > 19:
        break


print(t)
print(f'Found x = {c:.7} with f(x) = {f(c):.7} after {step-1} steps\n')

'''
+------+-----------+-----------+-----------+-----------+-------------+------------+-------------+------------+-----------+
| step |     a     |     b     |     c     |     x     |      fa     |     fb     |      fc     |     fx     |    emax   |
+------+-----------+-----------+-----------+-----------+-------------+------------+-------------+------------+-----------+
|  0   |     1     |     3     |     5     | 2.3166288 | 106.2831853 | 89.8820011 | 177.0796327 | 76.8865773 |     4     |
|  1   | 1.9874716 | 2.3166288 |     3     | 1.9551871 |  75.1340388 | 76.8865773 |  89.8820011 | 75.1650885 | 1.0125284 |
|  2   | 1.9632582 | 1.9551871 | 2.3166288 | 2.0000493 |  75.1535364 | 75.1650885 |  76.8865773 | 75.1327478 | 0.3614417 |
|  3   | 1.9908515 | 2.0000493 | 1.9551871 | 1.9964618 |  75.1331037 | 75.1327478 |  75.1650885 | 75.132507  | 0.0448623 |
|  4   | 1.9950593 | 1.9964618 | 2.0000493 | 1.9964736 |  75.1325447 | 75.132507  |  75.1327478 | 75.132507  | 0.0049901 |
|  5   |  1.99612  | 1.9964736 | 1.9964618 | 1.9964727 |  75.1325093 | 75.132507  |  75.132507  | 75.132507  | 0.0003536 |
|  6   | 1.9964736 | 1.9964727 |  1.99647  | 1.9964727 |  75.132507  | 75.132507  |  75.132507  | 75.132507  |  3.6e-06  |
+------+-----------+-----------+-----------+-----------+-------------+------------+-------------+------------+-----------+
Found x = 1.996473 with f(x) = 75.13251 after 6 steps
'''
